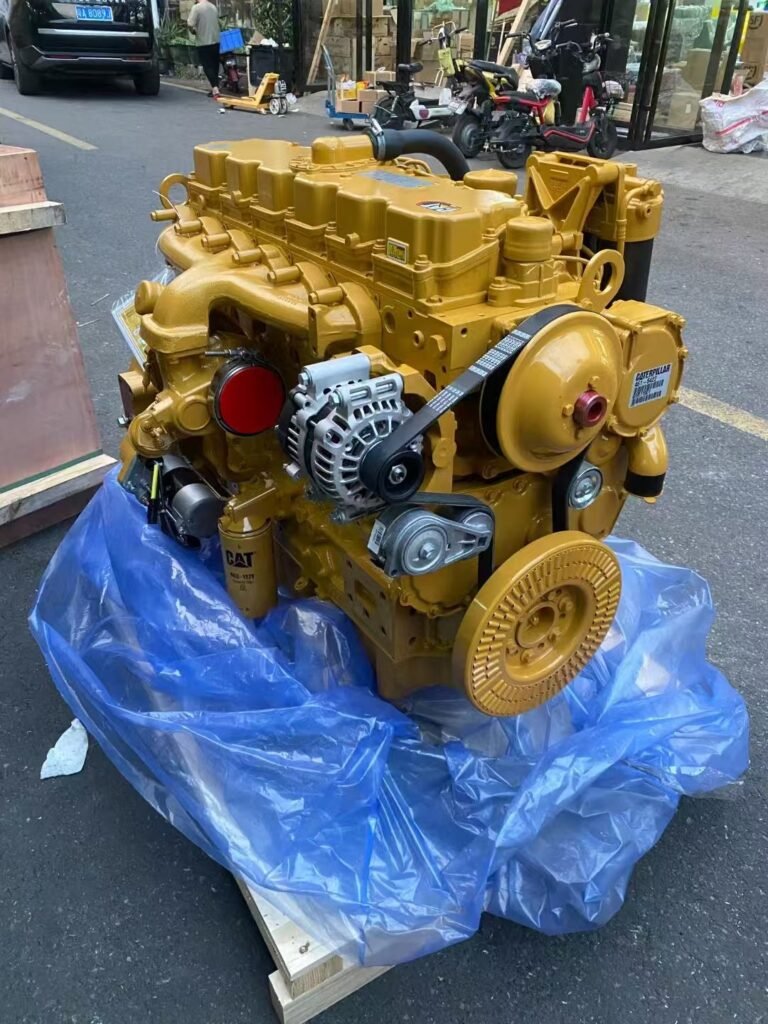

If you’re considering a used Caterpillar C7.1 engine, you’re looking at a proven 7.0L power source known for its reliability in excavators, generator sets, and various industrial applications. However, navigating the used engine market requires careful attention to avoid costly mistakes. This guide will help you make an informed decision.
⚙️ Understanding the C7.1: Performance & Common Uses
The C7.1 delivers 175-300 hp and complies with Tier 3/Stage IIIA to Tier 4 Final/Stage IV emission standards. You’ll typically find it in:
- Excavators: Cat 336D2/D2 XE
- Generator Sets: Units under 300 kVA
- Marine Applications: Auxiliary power for smaller vessels
💡 Key Features:
- Advanced high-pressure fuel system (HEUI) with variable geometry turbocharger for better low-end response
- Electronic control module (ADEM A4) supporting multiple operating modes
🔍 Pre-Purchase Inspection: 4 Critical Areas
1. History & Documentation
- Verify Operating Hours:
Cross-reference ECU data with the physical hour meter. A well-maintained C7.1 typically reaches 12,000-15,000 hours before major overhaul. - Review Maintenance Records:
Look for documentation of:- High-pressure fuel pump replacement (Part # 10R7974)
- Cylinder liner assemblies replacement
- Turbocharger (Model 28B-3560) maintenance history
2. Mechanical Condition Assessment
| Checkpoint | Healthy Standard | Warning Signs |
|---|---|---|
| Cold Start | Starts within 10 seconds, no smoke | Hard starting/white smoke |
| Turbo Shaft Play | ≤0.8mm | ≥1.2mm requires replacement |
| Oil Pressure | ≥1.2bar (idle), ≥3.5bar (rated) | Fluctuating or low pressure |
| DPF Pressure | <5kPa (Tier 4 models) | >80% clogging needs service |
3. Electronic System Diagnosis
- Use Cat ET diagnostic tool to check for:
- MID 190-FMI 13 (Fuel pressure sensor issues)
- MID 177-FMI 4 (Injector circuit problems)
- Verify ECM calibration is updated to latest version (can improve fuel efficiency)
4. Key Components Inspection
- Crankcase Ventilation: Clogged filters can cause oil contamination
- Aftertreatment: Tier 4 models require verified DOC+DPF function
- Coolant Quality: Use only Cat DEAC coolant – mixing types causes damage
⚠️ Common Problems & Solutions
Case 1: Premature Injector Wear
- Symptoms: Power loss, black smoke, 20% increased fuel consumption
- Cause: Contaminated diesel fuel with high water content
- Solution:
- Replace injector set (Part # 18B-4850)
- Install dual-stage fuel filters (Model 24B-0850)
- Use ultra-low sulfur diesel (<0.001% sulfur)
Case 2: EGR Cooler Corrosion
- Symptoms: Coolant loss, excessive white exhaust smoke
- Cause: Improper coolant mixture causing electrochemical corrosion
- Solution:
- Use Cat EC-1 certified coolant (1:1 ratio)
- Clean EGR cooler passages every 2,000 hours
- Regular coolant conductivity testing (<3000μS/cm)
📋 Compliance Checklist
- Emission Standards:RegionRecommended VersionKey ConsiderationsChina Stage IIITier 3No DPF, lower maintenanceEuropean UnionStage IIIB/IVActive regeneration required
- Import Requirements:
Tier 4 Final models require EPA Certificate or EU Declaration of Conformity for registration in regulated markets
💡 Maintenance Tips for Long Engine Life
- Fluid Management:
- Use Cat DEO 10W-30 oil, change every 500 hours
- Replace fuel filters every 250 hours
- Smart Monitoring:
- Install remote monitoring (Cat Product Link™)
- Monthly oil analysis to track wear patterns
- Preventive Maintenance:
- Clean intercooler every 1,000 hours
- Calibrate injectors every 2,000 hours
📞 Final Recommendations
Buying a used C7.1 requires careful attention to technical condition, documentation, and compliance. We recommend:
- Third-party 200+ point inspection
- Minimum 6-month warranty on major components
- Escrow payment protection
