Used Yanmar 3TNV76 Diesel Engine for Sale | 1.1L 3-Cylinder Rebuilt

Used Yanmar 3TNV76 Tier 4 Engine | 1.1L Rebuilt for Mini Excavators & Compact Tractors

Parameter	3TNV76 (Standard)	3TNV76-HGE	3TNV76-PBV1	3TNV76-XCJT
Displacement	1.116 L	1.2 L	1.115‑1.116 L	1.115 L
Bore × Stroke	76 mm × 82 mm	76 mm × 82 mm	76 mm × 82 mm	76 mm × 82 mm
Power Output	20.2 kW @ 3600 rpm	19.5 kW @ 3600 rpm	14.3 kW @ 2400 rpm	18.5 kW @ 3200 rpm
Max Torque	—	—	69 N·m @ 1600 rpm	—
Fuel System	Indirect Injection	Indirect Injection	Indirect Injection	Indirect Injection
Aspiration	Naturally Aspirated	Naturally Aspirated	Naturally Aspirated	Naturally Aspirated
Emission Level	EPA Tier 2‑4	Interim Tier 4 / Stage IIIA	EU Stage V	EU Stage V
Dry Weight	94 kg (back plate)	123 kg	—	—

Category yanmar engine

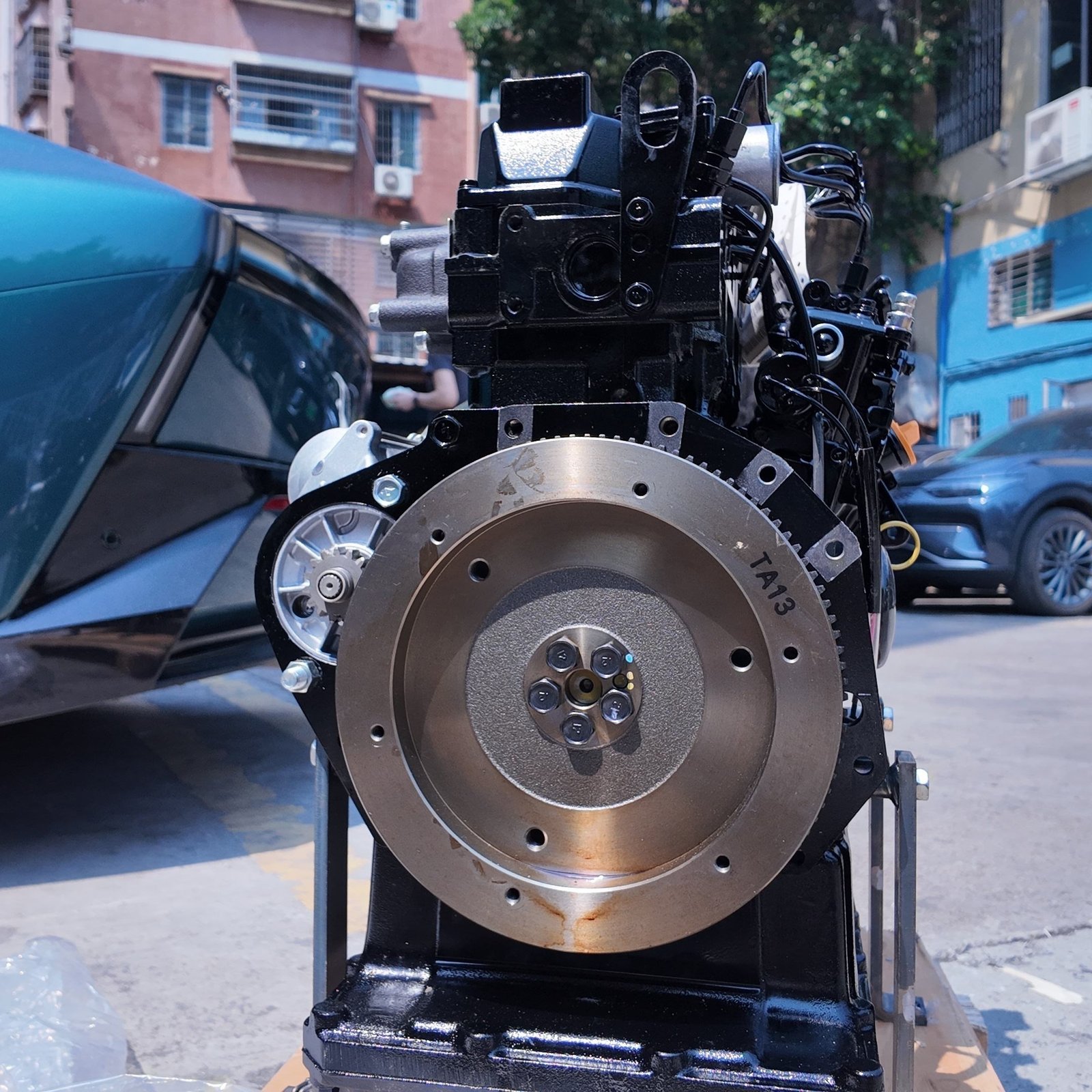

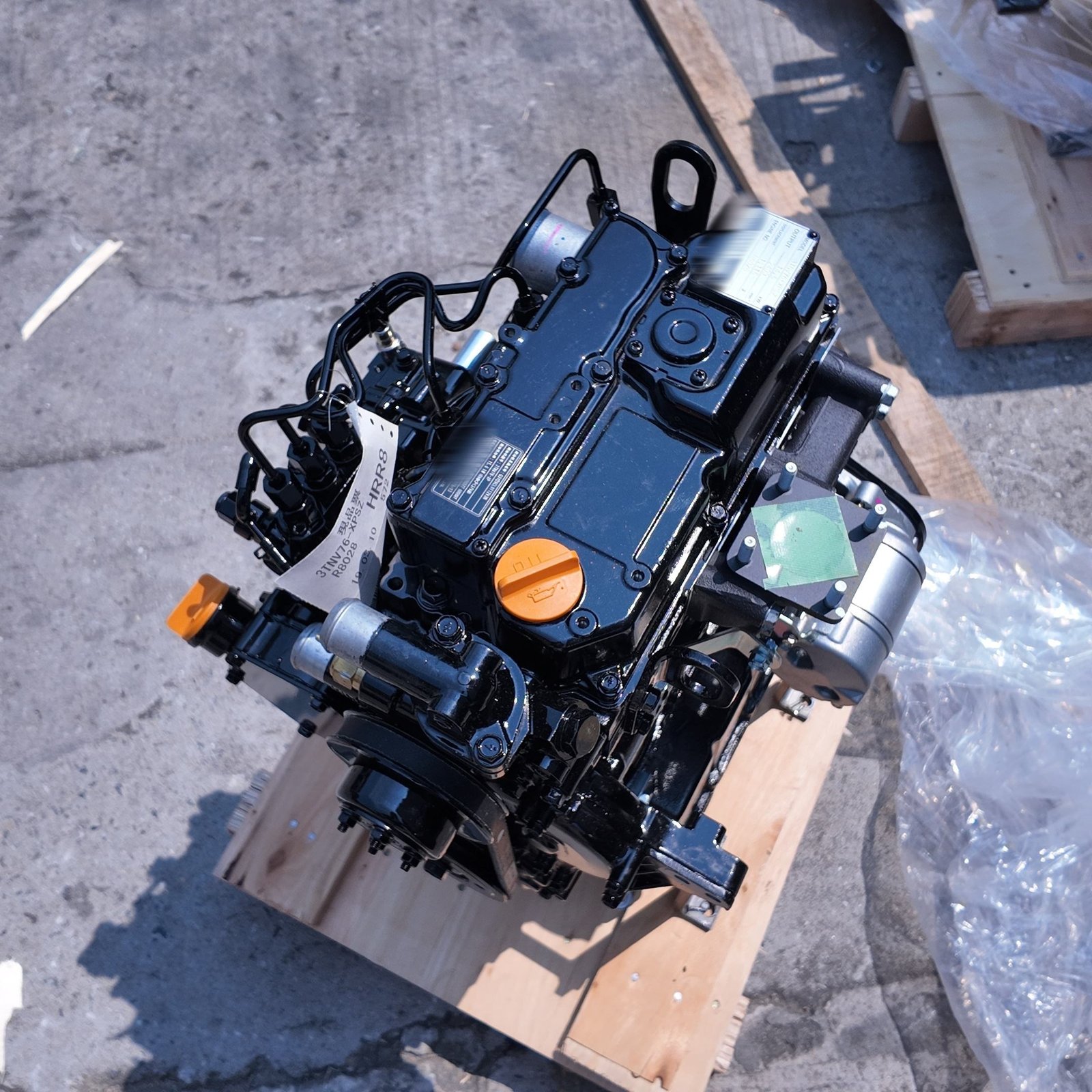

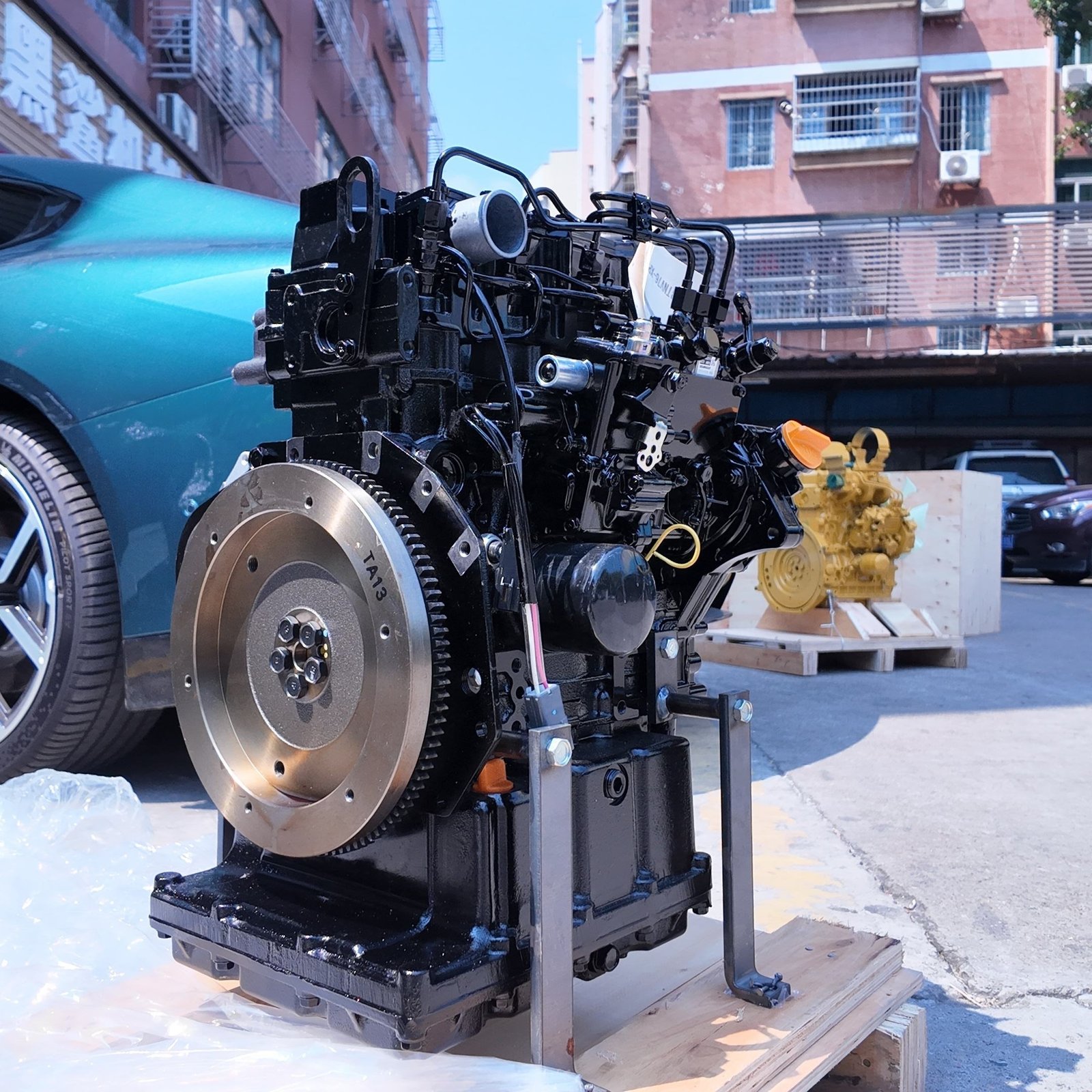

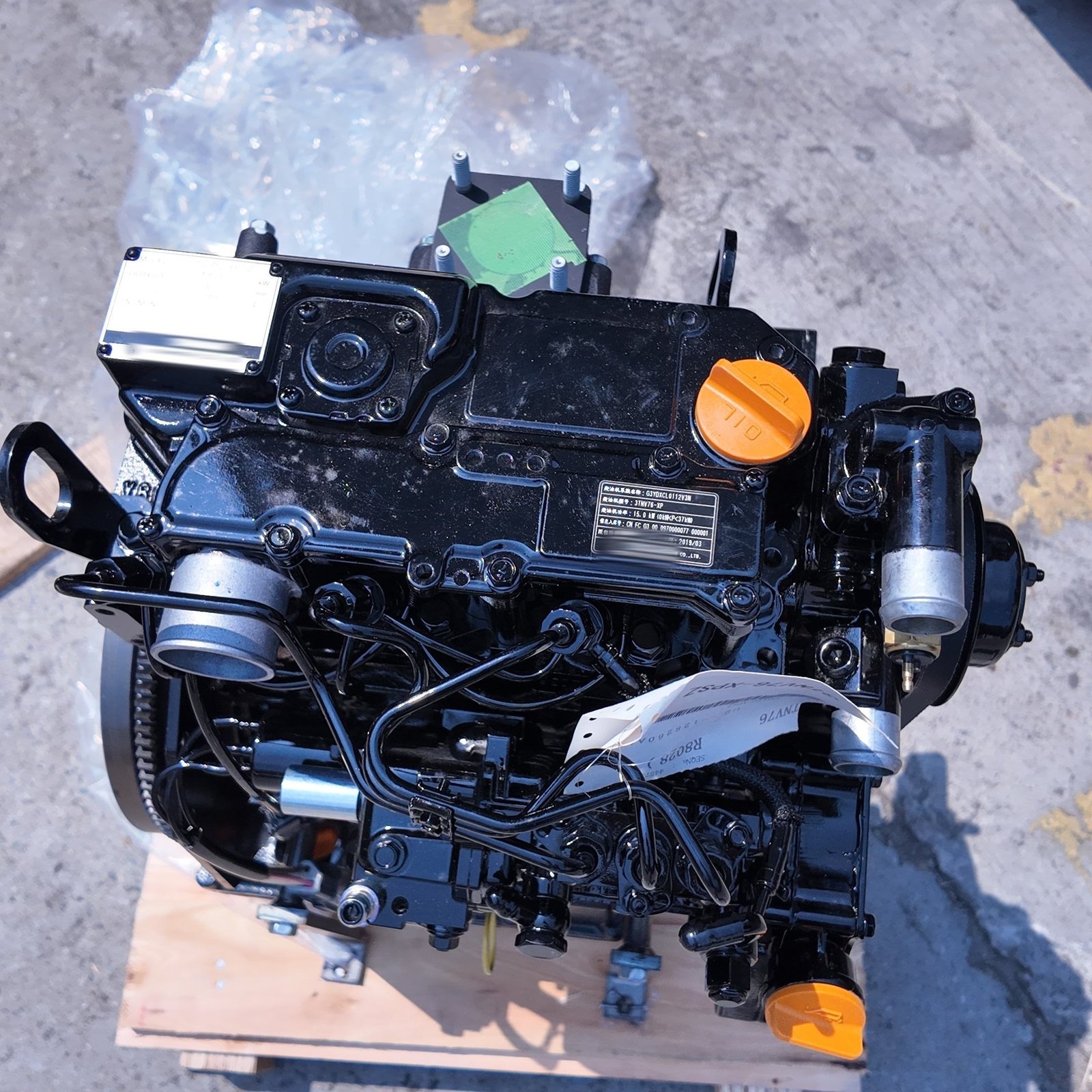

This rebuilt Yanmar 3TNV76 diesel engine is a compact, fuel-efficient power unit for mini excavators, compact tractors, and other small construction equipment. The engine has a displacement of 1.1 liters and a 3-cylinder design. It meets strict emission standards, including EPA Tier 4 and EU Stage V, without needing a DPF. We have completely overhauled this used engine for sale to factory specifications. It offers a reliable and cost-effective replacement for your equipment.

Applications & Compatibility

Mini Excavators: Yanmar SV22, ViO23‑6; Wacker Neuson 803; John Deere 18G, 18ZTS; Caterpillar 301.4C, 301.7D; Hitachi ZX17U‑5, ZX19‑5, ZX20U‑5
Compact Tractors: John Deere 1023E, 1025R, 2026R
Other Equipment: Doosan portable compressors, small wheel loaders, skid steer loaders, generators, pumps, cement mixers, lighting towers, hydraulic power packs

Key Features

Clean Operation: The engine uses indirect injection technology. It meets Tier 4 and Stage V emission standards without a DPF.
Compact Size: The engine is small and light, with a dry weight as low as 94 kg. It fits easily into compact machinery.
Durable Design: The engine block has improved cooling, stiffer internal parts, and tighter tolerances. This increases reliability in heavy use.
Low Noise and Vibration: Yanmar’s design reduces both radiant noise and gear noise. The engine runs quietly.
Fully Rebuilt: Every engine is fully disassembled. The cylinder head and block are inspected and reconditioned. The fuel pump is serviced. All wear parts are replaced.
Tested: Each unit is hot‑run tested to check compression, oil pressure, coolant flow, and timing. A test report is available.
Ready to Install: The engine ships as a long block with filters, fluids, mounting hardware, and wiring harness.
